How Are Container Ships Loaded and Unloaded: A Guide

Container ships move around 80-90 percent of global trade, carrying everything from electronics and clothing to food and industrial machinery. But have you ever wondered how those thousands of metal boxes are loaded, stacked, and secured safely on vessels that can carry more than 20,000 containers?

Loading a container ship is a carefully planned and highly coordinated operation involving ports, planners, crane operators, deck officers, and logistics teams. In this blog post, Martide is going to tell you how container ships are loaded and unloaded, and why precision is critical at every stage.

Understanding Container Ships and TEU

Before diving into the loading process, it helps to understand a few basics.

Containers are measured in TEU, or Twenty-foot Equivalent Units. One 20-foot container equals 1 TEU. A 40-foot container equals 2 TEU.

Container ships vary in size:

• Feeder vessels: Up to 3,000 TEU

• Panamax vessels: Around 4,000 to 5,000 TEU

• Post-Panamax vessels: 6,000 to 10,000 TEU

• Ultra Large Container Vessels (ULCVs): 18,000 to 24,000+ TEU

Needless to say, the larger the vessel, the more complex the loading operation.

Step 1: Planning the Load

Container ship loading begins long before the vessel arrives in port.

The Stowage Plan

A stowage plan is created by specialized planners, often using advanced software. This plan determines:

• Where each container will be placed

• The order of loading and unloading

• Weight distribution across the vessel

• Dangerous goods segregation

• Refrigerated container (reefer) placement

The goal is to ensure:

• The ship remains stable

• Cargo can be discharged efficiently at each port

• Safety regulations are followed

For example, containers bound for the first discharge port must be accessible and not buried under cargo for later destinations.

Step 2: Arriving at the Terminal

Once the vessel arrives at the container terminal, it’s secured alongside the berth. Terminal operations begin almost immediately, especially at major ports where turnaround time is critical.

Large container ships can be in port for less than 24 hours, so timing is everything. The days of sailors coming ashore for a mini break of drinking and letting off steam are pretty much long gone.

Step 3: The Role of Ship-to-Shore Cranes

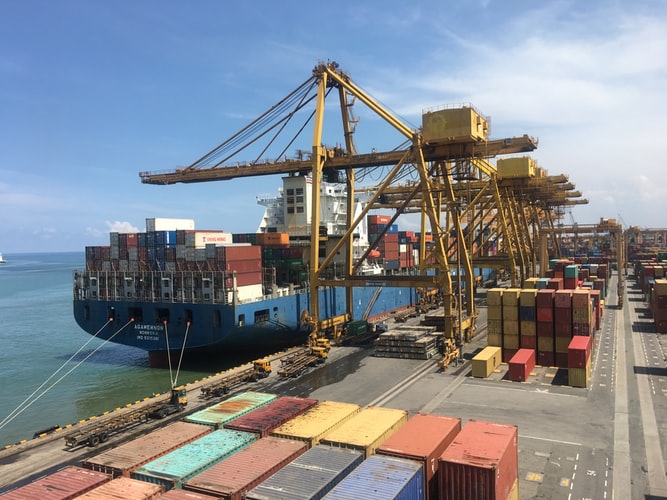

Container loading and unloading is carried out using giant ship-to-shore (STS) cranes.

These cranes:

• Lift containers using a spreader beam

• Can move 30 to 40 containers per hour

• Operate continuously during port calls

The crane operator lifts containers from the quay and places them into the ship’s container cells or onto deck slots.

On smaller feeder vessels, mobile harbor cranes may be used instead.

Step 4: Unloading Before Loading

Before new containers are loaded, cargo destined for that port must be discharged.

The process typically follows this sequence:

• Remove containers from the deck first

• Remove containers from cargo holds

• Deliver containers to waiting trucks or yard equipment

Terminal vehicles such as straddle carriers, automated guided vehicles (AGVs), or terminal tractors transport containers between the quay and storage yard.

Only after the discharge is complete can loading begin.

Step 5: Loading Containers into the Hold

Inside the vessel, containers are placed into vertical steel structures called cell guides.

Cell guides:

• Keep containers aligned

• Prevent shifting during the voyage

• Allow safe stacking in holds

Containers are stacked on top of each other in tiers. Heavier containers are generally placed lower in the hold to maintain stability.

The ship’s officers monitor loading closely to ensure it matches the approved stowage plan.

Step 6: Loading Containers on Deck

Once the holds are filled, containers are stacked on deck.

On deck:

• Containers are stacked in rows and tiers

• They are secured using lashing rods and turnbuckles

• Twistlocks are used to lock containers together vertically

Lashing teams work alongside crane operators to secure each container properly. Incorrect lashing can result in container loss at sea, especially in rough weather.

On ultra large container vessels, deck stacks can rise over 10 containers high.

Special Considerations in Container Loading

Weight Distribution and Stability

Improper weight distribution can:

• Cause excessive stress on the hull

• Affect trim and stability

• Lead to dangerous cargo shifts

Modern vessels use loading computers to calculate stability in real time.

Dangerous Goods

Containers carrying hazardous materials must comply with the International Maritime Dangerous Goods (IMDG) Code.

These containers must be:

• Properly declared

• Segregated from incompatible cargo

• Placed in accessible and ventilated locations

Reefer Containers

Reefer containers require power supply.

They are:

• Positioned near electrical sockets

• Monitored throughout the voyage

• Checked regularly for temperature control

Oversized Cargo

Out-of-gauge containers and project cargo require special planning and may be placed on deck in designated areas.

How Long Does Loading a Container Ship Take?

The duration depends on:

• Ship size

• Number of containers to handle

• Port efficiency

• Weather conditions

A large ULCV may handle over 10,000 container moves in a single port call. With multiple cranes working simultaneously, operations can run 24 hours a day.

Technology in Modern Container Terminals

Many major ports now use automation, in effect, turning them into ‘smart ports’.

Examples include:

• Automated stacking cranes

• AI-based stowage optimization

• Real-time container tracking systems

• Digital twin simulations

These technologies improve efficiency, reduce errors, and increase safety.

Unloading at the Next Port

At the next destination, the process is repeated in reverse.

Containers are discharged according to the port sequence in the stowage plan. Efficient planning reduces the need for “restows,” where containers must be moved temporarily to access others.

Restows increase time and cost, so planners aim to minimize them.

The Human Element

Although container shipping relies heavily on technology, skilled professionals remain essential.

Key roles include:

• Port planners

• Crane operators

• Terminal logistics teams

• Ship officers

• Lashing crews

• Safety inspectors

Clear communication between ship and shore teams is critical, especially during tight turnaround windows.

Safety and Environmental Considerations

Loading and unloading operations involve heavy machinery and high-risk environments.

Safety measures include:

• Strict access controls

• Personal protective equipment

• Clear communication protocols

• Weather monitoring

Environmental considerations are also important, including reducing idling times and managing emissions in port.

Conclusion

Loading a container ship is a complex and highly organized operation that combines engineering, logistics, and teamwork. From detailed stowage planning to crane coordination and cargo securing, every step must be executed with precision.

Whether it’s a small feeder vessel serving regional ports or a 24,000 TEU ultra large container ship crossing oceans, the principles remain the same: safety, stability, efficiency, and accuracy.

So the next time you see a container ship heading into port, you’ll know that behind those neatly stacked boxes lies an intricate system of planning and coordination that keeps global trade moving.

Frequently Asked Questions About Loading Container Ships

How are containers secured on a container ship?

Containers are secured using a combination of cell guides (inside the cargo holds), twistlocks, lashing rods, and turnbuckles. Twistlocks connect containers vertically, while lashing rods and tensioning equipment secure deck stacks to the vessel’s structure. Proper securing is essential to prevent cargo shifting or container loss at sea.

Who decides where each container is placed on the ship?

A specialist called a stowage planner creates the loading plan, often using advanced computer software. The plan considers container weight, destination, dangerous goods regulations, stability requirements, and discharge sequence. The ship’s officers then supervise loading to ensure the plan is followed correctly.

Why are heavier containers loaded at the bottom?

Heavier containers are generally placed lower in the hold to maintain the ship’s stability and reduce structural stress. Proper weight distribution helps prevent excessive bending forces on the hull and ensures safe navigation, especially in rough weather.

What happens if containers are loaded incorrectly?

Incorrect loading can lead to serious problems, including:

• Reduced vessel stability

• Structural damage

• Cargo shifts during heavy seas

• Delays due to rehandling containers

• Increased risk of containers falling overboard

This is why stowage planning and monitoring are critical.

How long does it take to load or unload a container ship?

It depends on the size of the vessel and the number of containers being handled. A small feeder ship may complete operations in a few hours, while a large ultra large container vessel may require 24 hours or more, with multiple cranes working simultaneously around the clock.

What is a restow, and why is it avoided?

A restow happens when a container must be temporarily moved to access another container below it. Restows add time and cost to port operations. Good stowage planning minimizes restows by ensuring containers are placed in the correct sequence for discharge at each port.

How are refrigerated containers handled?

Reefer containers are placed in designated areas with access to power outlets. They are connected to the ship’s electrical system and monitored regularly to maintain the required temperature throughout the voyage.

How do ports handle such large volumes of containers?

Modern container terminals use advanced equipment such as ship-to-shore cranes, automated stacking cranes, straddle carriers, and automated guided vehicles. Many ports also use digital tracking systems and AI-based planning tools to improve efficiency and reduce delays.

Is container loading automated?

While many ports use automated systems, human oversight remains essential. Crane operators, planners, deck officers, and lashing teams all play critical roles in ensuring safe and efficient operations.

What happens during bad weather?

Loading and unloading operations may be slowed or temporarily suspended during high winds or storms for safety reasons. Container cranes have strict wind limits, and safety always takes priority over speed.
